Reflex Sight M60

Drawing: M60 Reflex Sight Drawing: M60 sight reticle
Image: M60 Reflex Sight

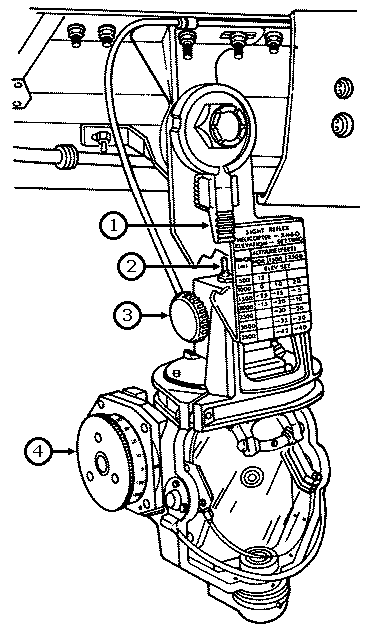

1. Stow lock Locks sight in stowed or extended position
2. Reticle lamp switch Selects reticle lamp to be used
3. Reticle intensity control Increases/decreases reticle intensity
4. Elevation/depression knob Adjust reticle to correspond with range to target
5. Cyclic firing switch (not shown) Fires weapon

Photo courtesy of 174th Assault Helicopter Company
