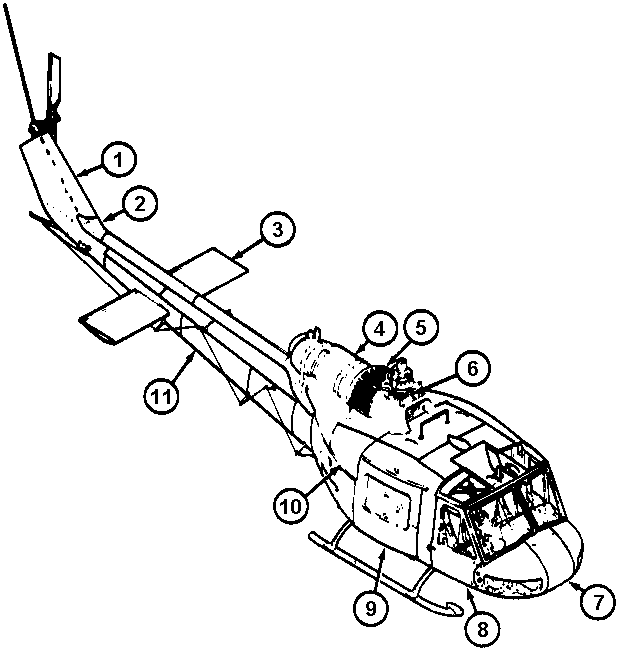

Drawing: UH-1M Items 1 - 12

1. Vertical fin 5. Barrier filter 9. Cabin door
2. Access fairing intermediate gearbox 6. Transmission 10. Transmission cowling
3. Elevator 7. Electronic compartment 11. Tailboom
4. Engine cowling 8. Crew door

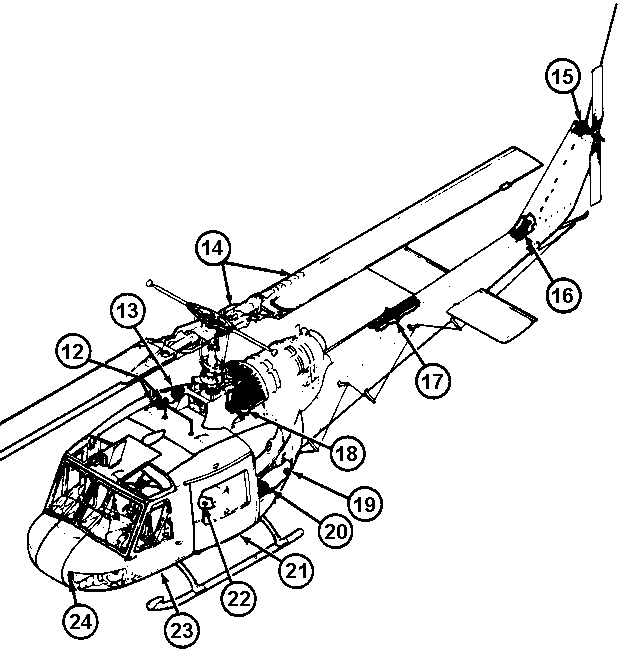

Drawing: UH-1M Items 12 - 24

12. Hydraulic reservoirs 17. Tail rotor drive shaft 22. Landing light (under aircraft)
13. Engine Oil Tank 18. Engine 23. Crew door
14. Main rotor hub and blade 19. External power receptacle 24. Searchlight (under nose)
15. Tail rotor gearbox 20. Battery
16. Intermediate gearbox 21. Cabin door

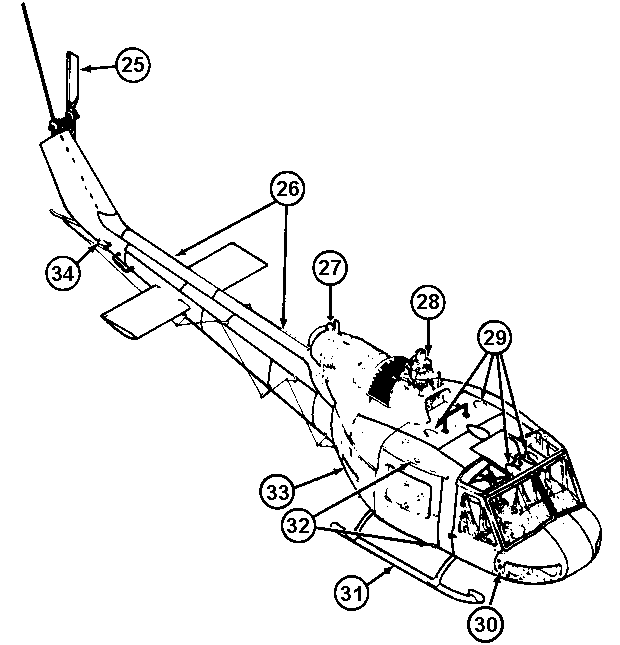

Drawing: UH-1M Items 25 - 34

25. Tail rotor 29 Cabin ventilators 33. Baggage compartment
26. Drive shaft access doors 30. Static port 34. Position light
27. Anti-collision light 31. Landing gear
28. Rotating controls 32. Position lights

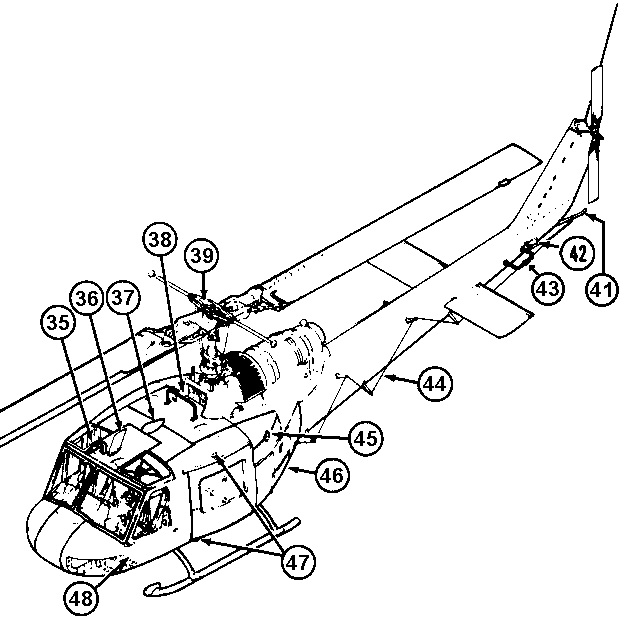

Drawing: UH-1M Items 35 - 48

35. Pitot static tube 41. Tail skid 47. Position lights
36. VHF / UHF antenna 42. Position light 48. Static port
37. ADF loop antenna 43. OMNI VHF antenna
38. FM homing antenna 44. HF antenna
39. Stabilizer bar 45. Fuel tank filler
40. FM radio set antenna 46. Electrical compartment
