Yak-28 BREWER (YAKOVLEV)

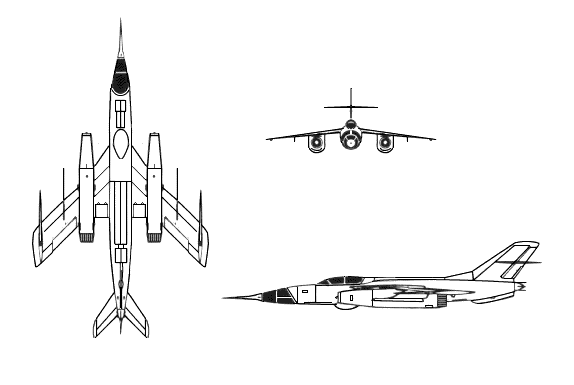

Drawing: Yak-28 Brewer

GENERAL DATA

Country of Origin. CIS (formerly USSR).
Similar Aircraft. Il-28 Beagle.
Crew. Two.
Role. Fighter-bomber, reconnaissance, ECM.
Armament. Bombs, cannons, rockets.
Dimensions. Length: 70 ft (21.36 m). Span: 41 ft (12.06 m).

WEFT DESCRIPTION

Wings. High-mounted, swept-back, and untapered from the engines to the large blunt tips. Wide wing roots.
Engine(s). Two turbojets in pods under the wings. Pods extend well beyond the wings’ leading and trailing edges.
Fuselage. Long with pointed, glazed nose and is tapered to the rear section. Bubble canopy. Belly fin under the rear section.
Tail. Fin swept-back and tapered with a blunt tip. Tail flats mid-mounted on the tail fin, swept-back, and tapered with blunt tips.

USER COUNTRIES

CIS, Ukraine.
