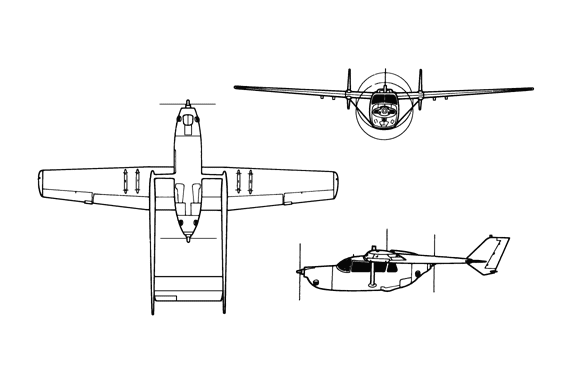

Drawing: O-2 Skymaster


Country of Origin. USA.
Similar Aircraft. Skymaster, 335 Model, not in this manual.
Crew. Two.
Role. Observation, liaison, forward air control, psychological warfare.
Armament. Miniguns, rockets.
Dimensions. Length: 29 ft, 9 in (9.6 m). Span: 38 ft, 3 in (11.64 m).


Wings. High-mounted with straight leading edges and forward-tapered trailing edges from midwing to blunt tips.
Engine(s). Two piston engines, one on the nose and one on the rear of the body.
Fuselage. Stubby, box-like with propellers at each end. Stepped, glassed-in cockpit. Rear of body upswept to tail booms.
Tail. Rectangular tail flat at end of twin tail booms. Swept-back tail fins with blunt tips at tips of tail flat. Fins extend above and below tail flat.


Central African Republic, Chad, Costa Rica, Dominican Republic, El Salvador, Ethiopia, Guinea-Bissau, Iran, Jamaica, Mauritania, Nicaragua, Niger, Portugal, Sri Lanka, Togo, USA, Venezuela.
