OH-13 SIOUX (BELL)

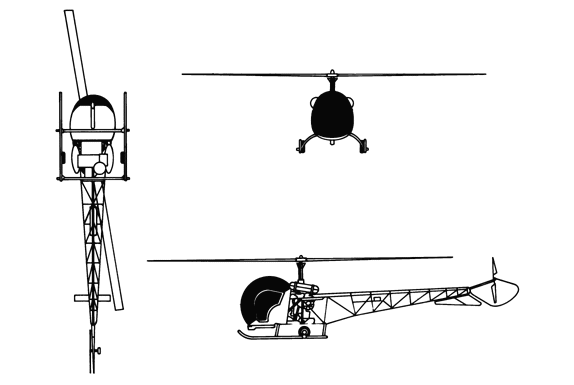

Drawing: OH-13 Sioux

GENERAL DATA

Country of Origin. USA.
Similar Aircraft. Alouette II, Alouette III, Gazelle, Scout/Wasp.
Crew. One.
Role. Utility, observation.
Armament. Minigun, rocket pods.
Dimensions. Length: 31 ft, 7 in (9.64 m). Rotor diameter: 37 ft (11.32 m).

WEFT DESCRIPTION

Wings. Dual-blade main rotor located above body midsection behind the cockpit.
Engine(s). One piston engine located inside latticework midsection behind the cockpit.
Fuselage. Round (goldfish bowl), glassed-in cockpit. Open-grid midsection and tail boom tapers to the rear. Belly fin. Skids with movable wheels attached for handling.
Tail. Small, rectangular flats. Small rotor centered at end of boom with rotor guard.

USER COUNTRIES

Brazil, Colombia, Spain, Thailand, Turkey, Uganda, USA.
