E-2C HAWKEYE (GRUMMAN)

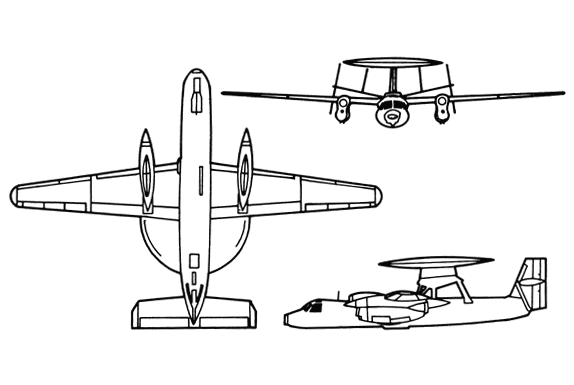

Drawing: E-2C Hawkeye

GENERAL DATA

Country of Origin. USA.
Similar Aircraft. G.222, C-160 Transall.
Crew. Five.
Role. AEW.
Armament. None.
Dimensions. Length: 57 ft, 6 in (17.53 m). Span: 80 ft, 6 in (24.6 m).

WEFT DESCRIPTION

Wings. High-mounted and equally tapered with blunt tips.
Engine(s). Two turboprops mounted under the wings. Engines extend well beyond the wings’leading edges.
Fuselage. Oval that tapers to the rear. Rounded nose. Stepped-up cockpit. Large radome.
Tail. Four fins (two fins are mounted on the tips of the flats and extend below the flats; the two inside fins are mounted on top of the flats). Flats are high-mounted on the fuselage and have a positive slant.

USER COUNTRIES

Egypt, Israel, Japan, Singapore, USA.
