APACHE CWS (MATRA)

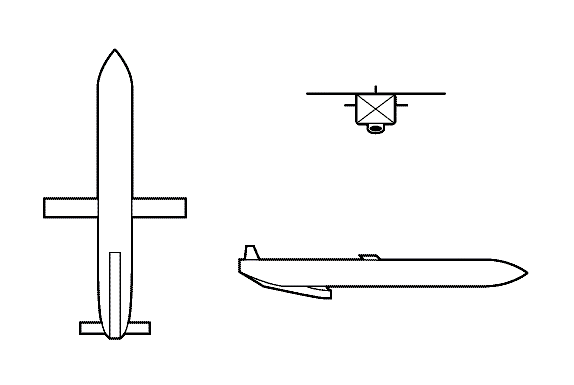

Drawing: Apache CWS

GENERAL DATA

Country of Origin. France.
Similar Aerial Platform. Tomahawk, AGM-86.
Role. Cruise, air-to-ground attack.
Armament. Submunitions and HE warhead.
Dimensions. Length: 16 ft, 4 in (5.01 m). Span: 8 ft, 3 in (2.53 m).

WEFT DESCRIPTION

Wings. High-mounted on body, straight with square tips, and a slight negative slant.
Engine(s). Single turbojet mounted in rear of fuselage. Air intake in scoop beneath the rear section. Round exhaust in rear.
Fuselage. Round, tapers to a pointed nose and a blunt rear. Radar in nose is not visible.
Tail. Fin unequally tapered with square tip. Flats mid- to high-mounted on the fuselage, straight with square tips.

USER COUNTRIES

France.
