C-101 (CPMIEC)

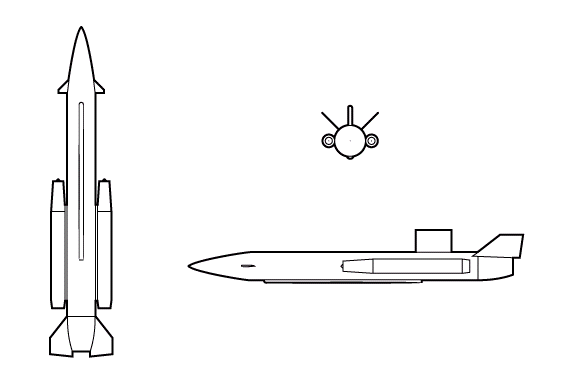

Drawing: C-101

GENERAL DATA

Country of Origin. China.
Similar Aerial Platform. AS-15 Kent.
Role. Medium-range, air-to-surface cruise missile.
Armament. 400-kg warhead.
Dimensions. Length: 19 ft (5.8 m). Span: 3 ft, 9 in (1.2 m).

WEFT DESCRIPTION

Wings. Similar to canards, they are mid-mounted on the body near the nose section.
Engine(s). Side-mounted ramjet mid-mounted on the body. Small round intakes and large round exhausts.
Fuselage. Long, round, and tapers to nose cone. Blunt rear. Launch rail on bottom.
Tail. V-mounted, back-tapered tail flats. Square tail fin forward of tail flats.

USER COUNTRIES

China.
