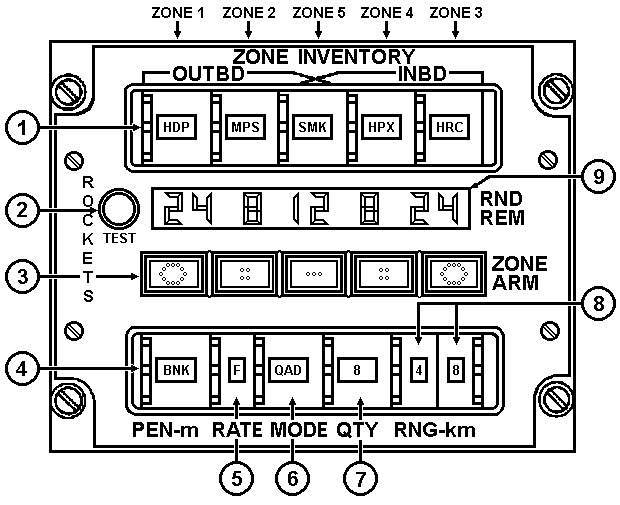

Selector |
Function |
| 1. |
ZONE INVENTORY
(Warhead / Fuze / Type)
Indicatory / Selectors |
| CHF |
— |
Chaff warhead (countermeasures). |
| MPS |
— |
Multi-purpose submunition/resistance
capacitance. |
| SMK |
— |
Smoke screen/resistance capacitance. |
| ILM |
— |
Illumination/resistance capacitance. |
| FLC |
— |
Flechette — submunition/resistance
capacitance. |
| H17 |
— |
17 pound, high explosive, point
detonating or proximity. |
| WP |
— |
White phosphorous/point detonating. |
| HDP |
— |
High explosive/dual purpose. |
| HRC |
— |
High explosive/ resistance capacitance. |
| HPX |
— |
High explosive/proximity. |
| HPD |
— |
High explosive/point detonating. |
| Blank |
— |
Special purpose, i.e. inert, target XM —
marker, guided rocket, future E.W. countermeasure. |
|
| 2. |
TEST Switch |
Tests digital display segment and indicator
lamps (RND REM), and subsystem (including helicopter wiring) from end to
end (excluding firing circuits). |
| 3. |
ZONE ARM
(Zone Arming) Indicator/Switches |
Pressing appropriate ZONE ARM switch arms
selected zone. When any one zone is selected (armed) all other zones with
identical rounds are automatically armed and visually indicated by
appropriate ZONE ARM switch(es). Any round selected by pressing a ZONE ARM
switch, which is different (different zone) will automatically de-arm
previously selected zone(s). |
| 4. |
PEN-M
(Penetration in Meters) Indicator/Selector |
Permits pilot to select tree height range
detonation (in five meter increments), superquick detonation or bunker
penetration detonation.
|
45 |
— |
|
Canopy height in meters. Enables round to
penetrate canopy of forest or building and detonate at more
effective point |
|
40 |
— |
|
35 |
— |
|
30 |
— |
|
25 |
— |
|
20 |
— |
|
15 |
— |
|
10 |
— |
|
|
|
|
|
|
BNK |
— |
Bunker penetration — to defeat bunkers
(logs and dirt) up to 3 meters thick. |
|
SQ |
— |
Superquick — detonates when fuze makes
contact with any object. |
|
| 5. |
RATE
Indicator/Selector |
| F |
— |
FAST, fires rockets at 60 plus or minus 6
milliseconds intervals. |
| S |
— |
Slow, fires rockets at 180 plus or minus
18 millisecond intervals. |
| A |
— |
Automatic, enables system to set firing
interval from predetermined rates that would be programmed for each
type of rocket / fuze combination that is available for selection. |
|
| 6. |
MODE
Indicator / Selector |
| QAD |
— |
Quad fire of four rounds, one round from each launcher
with inboard rounds leading outboard rounds by 30 milliseconds. |
| PRS |
— |
Pair firing of two rounds, one from each side of
helicopter from zone that has been armed. |
| SNG |
— |
Single fire of one round, alternating from side to
side of helicopter. |
|
| 7. |
QTY
(Quantity) Indicator / Selector |
Selects quantity of rockets to be fired and are
a multiple of the MODE indicator / selector setting.
|
ALL |
— |
Sustained or continuous fire of all rounds selected. |
|
8 |
— |
8 x MODE setting of rounds selected. |
|
4 |
— |
4 x MODE setting of rounds selected. |
|
2 |
— |
2 x MODE setting of rounds selected. |
|
1 |
— |
1 x MODE setting of rounds selected. |
|
| 8. |
RNG-km
(Range in kilometers)
Indicator / Selector
|
Selects range to target from 500 to 6000 meters
in 100 meter increments for rocket ballistics solution when A is
not selected.
Left Indicator / Selector
|
Numerals |
— |
Selects 1000 meter position. |
|
A |
— |
Allows range from laser ranger finder to
be used by FCC for ballistics solution and time of function data to
be accepted by RMS from FCC. |
|
|
|
|
| Right Indicator / Selector |
|
|
|
|
|
Numerals |
— |
Selects 100 meter position. Any ranges
selected less than 500 meters (0.5) will only provide 500 meter
range settings. |
|
| 9. |
RND REM
(Rounds Remaining Indicators) |
Indicates functional rounds remaining in
inventory by zone location. |
