A-7 CORSAIR II (VOUGHT)

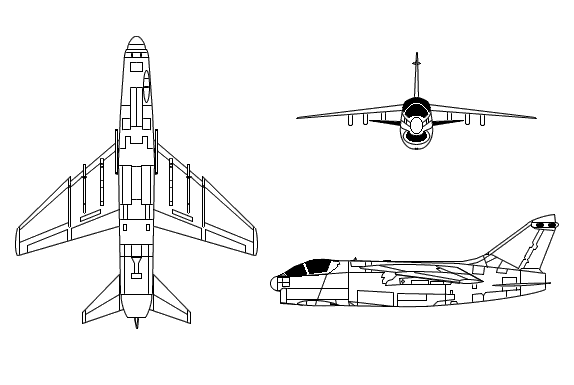

Drawing: A-7 Corsair II

GENERAL DATA

Country of Origin. USA.
Similar Aircraft. F-16 Fighting Falcon, G-91Y, Su-17 Fitter.
Crew. One; TA-7H and A-7K--two.
Role. Attack, CAS.
Armament. Bombs, rockets, missiles, cannon, gun pods.
Dimensions. Length: 46 ft (14.06 m ). Span: 38 ft, 8 in (11.8 m).

WEFT DESCRIPTION

Wings. High-mounted, swept-back, and tapered with blunt tips and a negative slant. Sawtooth in the leading edges on some models.
Engine(s). One turbofan inside the body; oval air intake under a round nose. Single exhaust.
Fuselage. Wide, thick body with rounded nose and blunt tail section. Bubble canopy is located well forward on the nose.
Tail. Flats mid-mounted on the body, swept-back and tapered, with a positive slant. The fin is swept-back with a curved tip.

USER COUNTRIES

Greece, Portugal, USA.
