CHAPTER 6

Air Superiority and Interceptor Aircraft

The normal operating ceiling for most of these aircraft will generally keep them out of range of individual or crew-served weapons, although some of the aircraft have ground-attack capabilities. Their inclusion in this manual is for soldier interest and to cover likely aircraft present in a theater of operation.

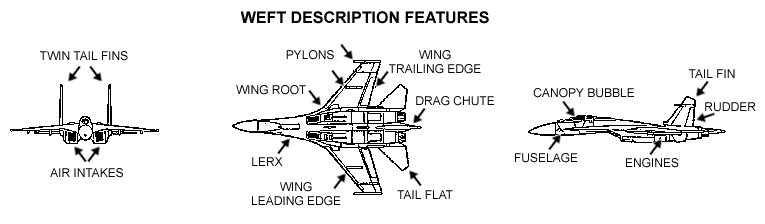

For each aircraft, there are line drawings, general data, WEFT descriptions, user countries, photographs, and aircraft manufacturer information. Line drawings are not to scale. The following illustration shows fighter aircraft WEFT description features.

Drawing: WEFT descriptions

Chapter 6 Aircraft List

F-14 Tomcat MiG-25 Foxbat Su-15 Flagon
F-15 Eagle MiG-31 Foxhound Su-27 Flanker
MiG-19 Farmer Mirage 2000 Tornado ADV
MiG-23 Flogger B
