Drawing: Chapter 8


Cargo and Transport Aircraft

This chapter provides examples of cargo and transport aircraft. Many of these aircraft have very similar recognition features because they were all designed to perform similar, specific missions such as operating from short, unimproved runways, roads, or fields. Modern cargo and transport aircraft are manufactured with high-mounted straight wings which allow greater lift and better control at low speeds and altitudes.

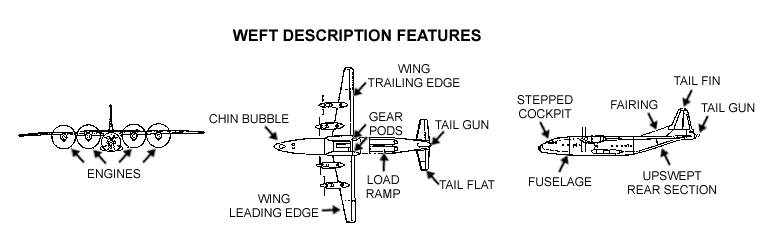

For each aircraft, there are line drawings, general data, WEFT descriptions, user countries, photographs, and aircraft manufacturer information. Line drawings are not to scale. The following illustration shows cargo and transport aircraft WEFT description features.

Drawing: WEFT Descriptions

Chapter 8 Aircraft List

An-12 Cub Buffalo, C-8A C-141B Starlifter
An-24 Coke, An-26 Curl C-5 Galaxy C-160 Transall
An-32 Cline Caribou, C-7A DC-3 Dakota
An-72 Coaler C-17A Globemaster III G.222
An-124 Condor C-123 Provider Il-14 Crate
Aviocar C-212 C-130 Hercules Il-76 Candid
